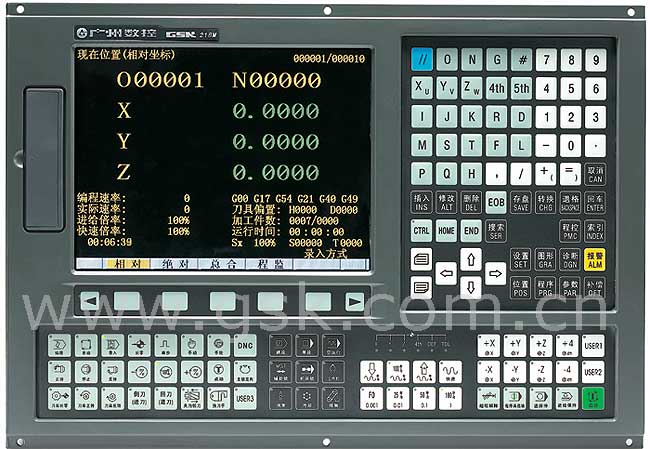

GSK218M Drillling&Milling CNC System

GSK218M is widespread CNC system (matched with machining center and general milling machine) independently developed by GSK CNC Equipment Co., Ltd., employed with 32-bit high performance CPU and super-large-scale programmable device FPGA, real-time control and hardware interpolation technology to ensure the system gets the high efficiency with the μm-level precision, and its PLC can be edit on-line, which makes the logic control function become more flexible and strong.

Characteristics

The standard configuration of system is 4-axis 3 l ink, and the rotation axis can be set by parameters;
The max. positioning speed can reach 30m/min, and the max. interpolation speed can reach 15m/min;
Linear, exponential and S acceleration/deceleration is optional;
Bidirectional pitch error compensation, backlash error compensation, tool length and tool radius compensation are available;　　　　　　　　　　　　　　　　　　　　
Convenient management for the system with multilevel operation password;　　　　
10.4 inch chromatic LCD .The Chinese , English and Russian interface can be selected by setting the related parameter;　　　　　　　　　　　　　　　　　　　　　　　　　　　
The system has 56M program memory capacity to store up to 400 programs and has the back stage edit function and can edit the program on the background, 　　　　　
The system has the standard RS232 and USB interface which can realize the bidirectional transmission of programs, parameters and PLC programs between CNC and PC;　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　
The system has DNC control and its baud rate can be set;　　　　　　　　　　　　　
Its built-in PLC can realize the various of logic control functions; its ladder can be edit , uploaded and downloaded on-line;　　　　　　　　　　　　　　　　　　　　　
It is easy to switch manner of automatic and manual by the function of manual intervention and return. 　
It can be implemented that coordinate moved in automatic operation by the manual handle intervention and step intervention.　　　　　　　　　　　　　　　　　　　　
It's supported that editing a program whi le executing another program by background editing.
It can be selected by parameter between rigid tapping and tapping of spindle followed. 　　　　
3 level automatic gearing, the voltage of frequency conversion may be changed by setting spindle speed at any moment.
It is supported some advanced functions that rotation, scaling, polar coordinate and many canned cycle, etc.
By USB function, it's easy to upload and download programs, to machine workpieces online.

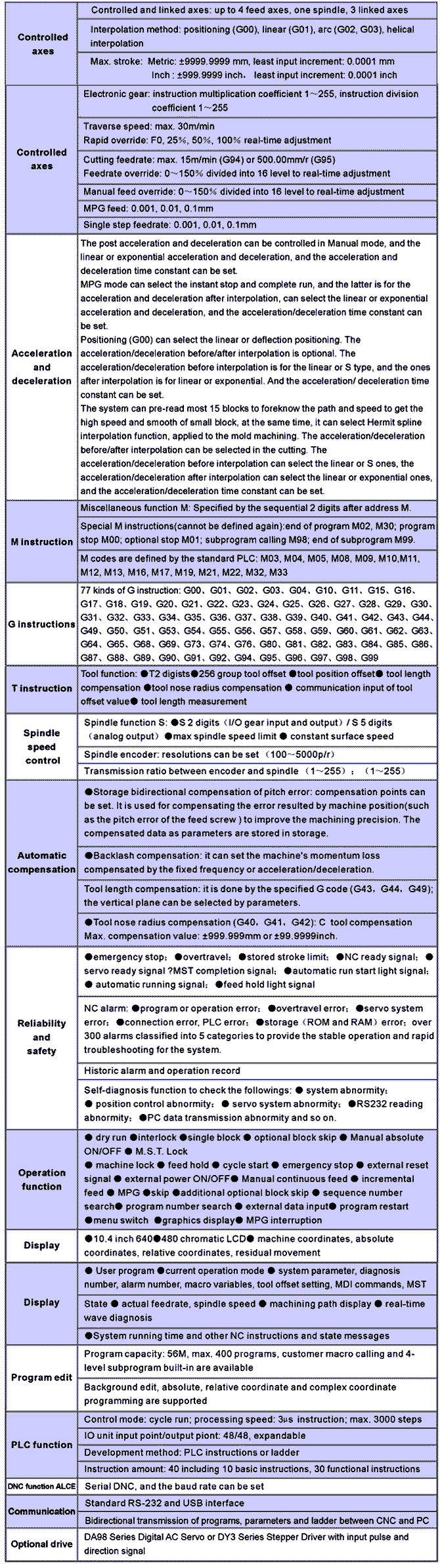

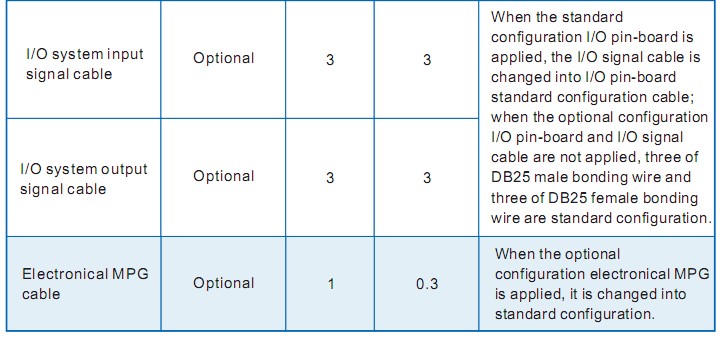

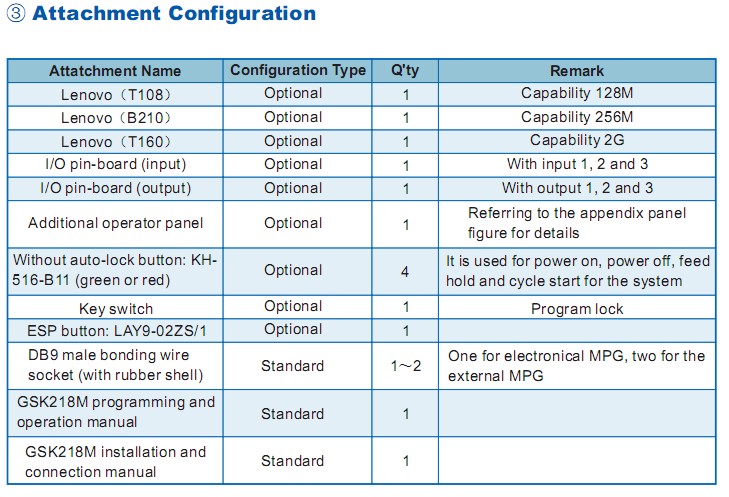

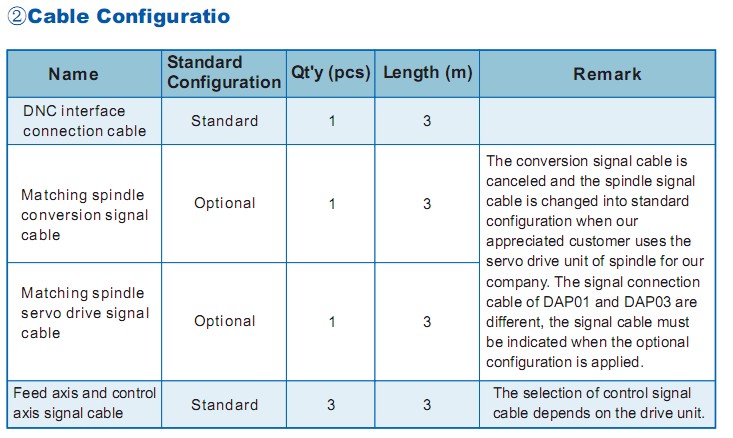

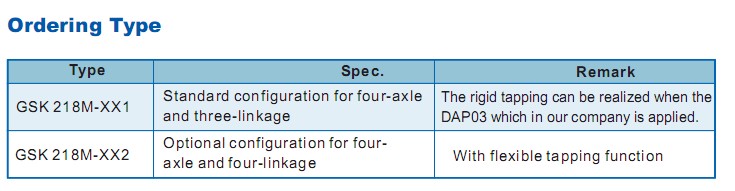

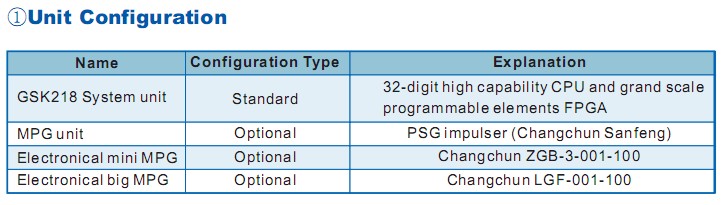

Technical specifications

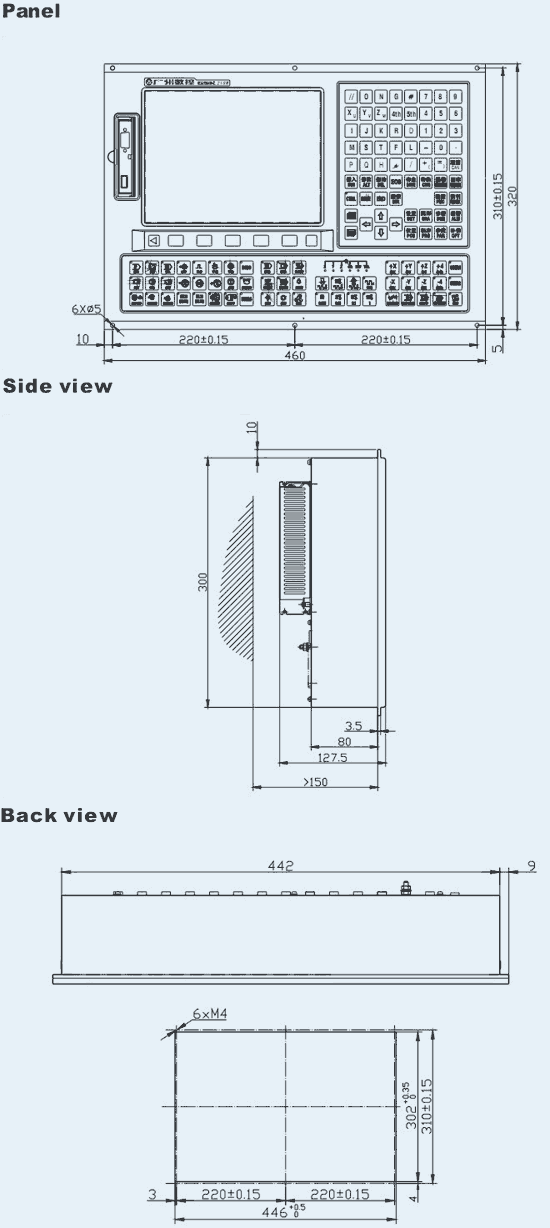

Appearance Dimension

Code list

G code

Group

Code form

Function

*G00

G00 X_Y_Z_

Positioning (rapid traverse)

G01

G01 X_Y_Z_F_

Linear interpolation(cutting feed)

G02

G02	X_Y_	R_	F_；
G03		I_J_

Circular interpolation CW (clockwise)

G03

Circular interpolation CCW (counterclockwise)

G04

G04 P_ or G04 X_

Dwell

G10

G 10L _；N_P_R_

Programmable data input

*G11

G11

Programmable data input cancel

*G12

G12 X_Y_Z_ I_J_K_

Stored travel check ON

G13

G13 X_Y_Z_ I_J_K_

Stored travel check OFF

*G15

G15

Polar coordinates command cancel

G16

Polar coordinates command

*G17

G18

G19

Write it after other programs, it is used in the arc interpolation and tool radius nose compensation.

XY plane selection

ZX plane selection

YZ plane selection

G20

It is located at the beginning of program and before coordinate system setting, and the single block is specified.

Input in inch

*G21

Input in metric

G22

G22 X_Y_Z_R_I_L_W_Q_V_D_F_ K_

Inner groove roughing (CCW)

G23

G23 X_Y_Z_R_I_L_W_Q_V_D_F_K_

Inner groove roughing (CW)

G24

G24 X_Y_Z_R_I_J_D_F_K_

Inner finishing cycle(CCW)

G25

G25 X_Y_Z_R_I_J_D_F_K_

Inner finishing cycle(CW)

G26

G26 X_Y_Z_R_I_J_D_F_K_

Outer finishing cycle(CCW)

G27

X_Y_Z_

Reference point return check

G28

Reference point return

G29

Return from reference point

G30

G30Pn

Return to 2^nd, 3^rd, 4^th reference point

G31

Skip function

G32

G32 X_Y_Z_R_I_J__D_F_K_

Outer finishing cycle(CW)

G33

G33 X_Y_Z_R_I_J_L_W_Q_V_U_D_F_K_

Rectangular inner groove roughing(CCW)

G34

G33 X_Y_Z_R_I_J_L_W_Q_V_U_D_F_K_

Rectangular inner groove roughing (CW)

G35

G35 X_Y_Z_R_I_J_L_ U_D_F_K_

Rectangular inner groove finishing (CCW)

G36

G36 X_Y_Z_R_I_J_L_ U_D_F_K_

Rectangular inner groove finishing (CW)

G37

G37 X_Y_Z_R_I_J_L_ U_D_F_K_

Rectangular outer groove finishing (CCW)

G38

G38 X_Y_Z_R_I_J_L_ U_D_F_K_

Rectangular outer groove finishing (CW)

G39

G39 I_J_； I_J_； J_K_ or G39

Cornering offset arc interpolation

*G40

G17

G40

G41

G42

D_X_Y_

Tool radius compensation cancel

G41

G18

D_X_Z_

Tool nose radius compensation left

G42

G19

D_Y_Z_

Tool nose radius compensation right

G43

H_Z_

Tool length compensation + (positive direction)

G44

Tool length compensation - (negative direction)

*G49

G49

Tool length compensation cancel

*G50

G50

Scale zoom cancel

G51

G51 X_ Y_ Z_ P_

Scale zoom

G53

Write in program

Machine tool coordinate system selection

*G54

Write it after other programs in block，it is placed at the beginning of program

Workpiece coordinate system 1 selection

G55

Workpiece coordinate system 2 selection

G56

Workpiece coordinate system 3 selection

G57

Workpiece coordinate system 4 selection

G58

Workpiece coordinate system 5 selection

G59

Workpiece coordinate system 6 selection

G60

G60 X_ Y_ Z_ F_

Single direction positioning

G61

Exact stop check mode

G62

Automatic corner override

G63

Tapping mode

*G64

G64

Cutting mode

G65

G65 H_P# i Q# j R# k

Custom macro simple call

G68

G68 X_ Y_ R_

Coordinates rotation

*G69

G69

Coordinates rotation cancel

G73

G73 X_Y_Z_R_Q_F_；

Peck drilling cycle

G74

G74 X_Y_Z_R_P_F_；

Counter tapping cycle

G76

G76 X_Y_Z_R_P_F_K_；

Fine boring cycle

*G80

Write in the block

Canned cycle cancel

G81

G81 X_Y_Z_R_F_；

Drilling cycle(spot boring)

G82

G82 X_Y_Z_R_P_F_；

Drilling cycle(counter boring)

G83

G83 X_Y_Z_R_Q_F；

Peck drilling cycle

G84

G84 X_Y_Z_R_P_F_；

Tapping cycle

G85

G85 X_Y_Z_R_F_；

Boring cycle

G86

G86 X_Y_Z_R_F_；

Drilling cycle

G87

G87 X_Y_Z_R_Q_P_F_；

Back boring cycle

G88

G88 X_Y_Z_R_P_F_；

Boring cycle

G89

G89 X_Y_Z_R_P_F_；

Boring cycle

*G90

Write in the block

Absolute programming

G91

Incremental programming

G92

G92 X_Y_Z_

Coordinate system setting

*G94

G94

Per minute feed

G95

Per rev feed

G96

G96S_

Constant surface speed control（cutting speed）

*G97

G97S_

Constant surface speed control cancel（cutting speed）

*G98

Write in the block

Return to initial point in canned cycle

G99

Return to R point in canned cycle

Others
