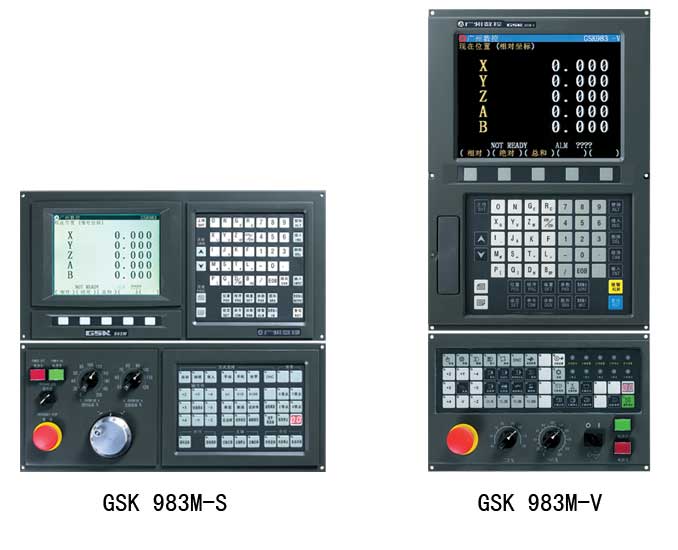

GSK983M-S is employed with 640*480 high resolution and high light LCD display about 7.5 inch, and GSK983M-V with 640*480 high resolution and high light 16 colors display about 10.4 inch. The two CNC systems are high speed, high precise and high efficient with high performance-cost and high reliability.

• HIGH PRECISE MACHINING

It  is adopted with high performance position closed-loop control chip and high precise position  detection  components  to  real ize  the  high  precise  and  high  response  positioncontrol. The machinery errors such as the pitch error of bal l lead can be corrected by the memory pitch error compensation. The federate override can be automatical ly regulated at the corner.　　　　　　

• HIGH SPEED MACHINING

When  the  resolution  is  1 m,  max.  rapid  speed  is  up  to  24m/min  and  max. feedrate  to  15000mm/min,  which  are  applied  to  the  control  of  milling machine and machining center. The system is adopted with many high speed CPUs  to  dispersedly  process  it,  which  has  realized  the  continuously high speed machining for the tiny block. It can execute 1000 blocks in a second,  which  is  specially  applied  to  high  speed  mold  machining,  auto component  machining,  wool  machinery  and  laser  machining  machine  tool control. 　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　

• HIGH SPEED DNC FUNCTION

The  exclusive  high  speed  buffer  serial  DNC  interface  with  38,400  baud  rate  is connected with the computer or U disk to real ize the high speed DNC machining.　　

• ABUNDANT CONTROL FUNCTIONS

It  is  employed  with  3  (up  to  5)feed  axes,  1  spindle,  tool  l ife  management,  direct drawing dimension programming, scale zoom, coordinate system rotating, compound  fixed  cycle,  back  stage  edit,  graphic  display,  exclusive  user  macro program to realize the special machinery machining. 　　　　　

• POWERFUL BUILT-IN PLC

Built-in  machine  tool  sequence  control  and  large  capacity  PLC  for  the  peripheral equipment.  Maximum  I/O:  192  input  signals  and  128  output  signals  (I/O  points include I/O on the operator panel and I/O unit), I/O unit includes 64 input signals and 40 output signals, and program capacity is up to 2,000 steps (PLC-A type).　　　　　

• COMPACT AND ULTRA-THIN CNC

It  is  adopted  wi th  the  latest  high  integrated  FPGA,  CPLD  chip  to  reduce  the dimension of the control units.

• IT IS CONNECTED WITH CNC BY THE HIGH SPEED SERIAL COMMUNICATION TO SAVE THE ASSEMBLY LINE.

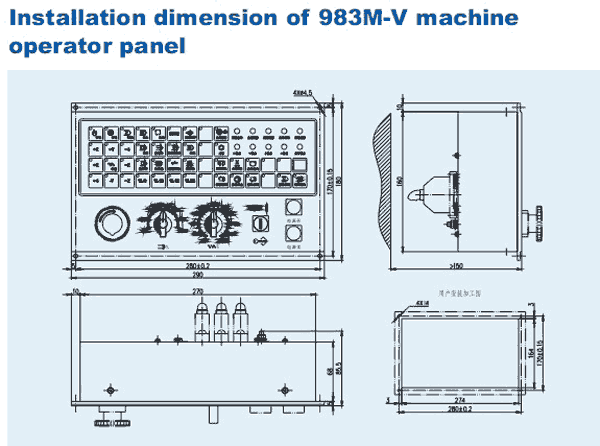

• MACHINE OPERATION PANEL

It has  44 mechanical keys with a LED indicator for each. Their function specified by PLC  programming  and  also  they  can  correspondingly  be  connected  with  the selection  switches  of  feedrate  override,  spindle  override,  MPG  override  and coordinate  axis.  Separated  structure:  it  is  connected with CNC  by  the  high  speed serial communication interface to save the wire.
