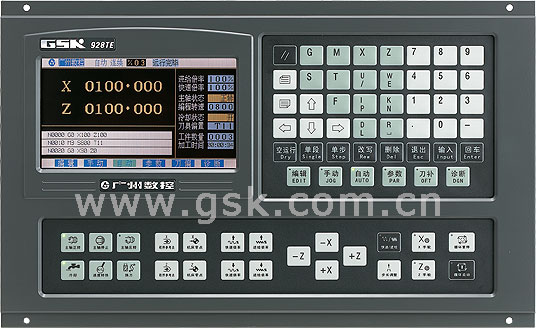

| GSK 928TE Turning CNC System |
|
|
GSK928TE, realized high-speed μm-precision control with CPLD hardware interpolation, has developed for economical high precision turning machine.
|
| Characteristics |
- GSK928TE, realized high-speed μm-precision control with CPLD hardware interpolation,has developed for economical high precision turning machine.
- GSK928TE has graphic LCD display with friendly Chinese/English menu and tool-trail display. Its adjustable speed-up/down time brings that it is widely suitable for reaction step drive system, complex step drive system, and servo drive system.
|
| Technical specifications |
Controllable/Linkage axes |
2 axes ( X , Z axis ) |
Min. setting unit |
0.001mm |
Max travel |
7999.999 |
Max move speed |
15000mm /min |
User Data Storage |
100programs, 24KB |
Graphic LCD |
320×240 lattice, tool-trail graphic display |
RS232 interface |
Optional |
Spindle functions |
4 grades control or 0 ~10V simulate control |
Tool numbers |
4 ~ 8 positions |
Move ratio |
25%,50% , 75% ,100%, adjustable |
Feed ratio |
0% ~ 150%, 16steps, adjustable |
Speed-up/down |
Adjustable |
Data protection |
User program and parameters safeguard at power-off |
Thread function |
Metric/inch line thread, taper thread, tool withdrawal mark thread |
Electro-hand wheel |
Optional |
Interpolation |
Linear/ arc interpolation |
Edit |
Full screen program edit, Doc manage |
Program mode |
Standard ISO code, relative/absolute complex program
edit, arc program edit with R, I, or K |
Main function code |
G00 ,G01,G02,G03,G33 ,G90 ,G92 ,G94,G74 ,G75 ,
G72,G22,G80 ,G26 ,G27,G29 ,G32 ,G04,M00 ,M02 ,
M20,M30 ,M03,M04 ,M05,M08,M09 ,M10,M11,M32 ,
M33,97,M98 ,M99,M21 ,M22,M23,M24 ,M91 ,M92,
S0-S9999 ,F0-9999 ,T00-T88, |
Soft/hardware over travel protection, driver alarm protection, parameters protection switch |
Overall size |
375 ×200×118mm /420 ×260×123.5mm (small/large) |
|
|
