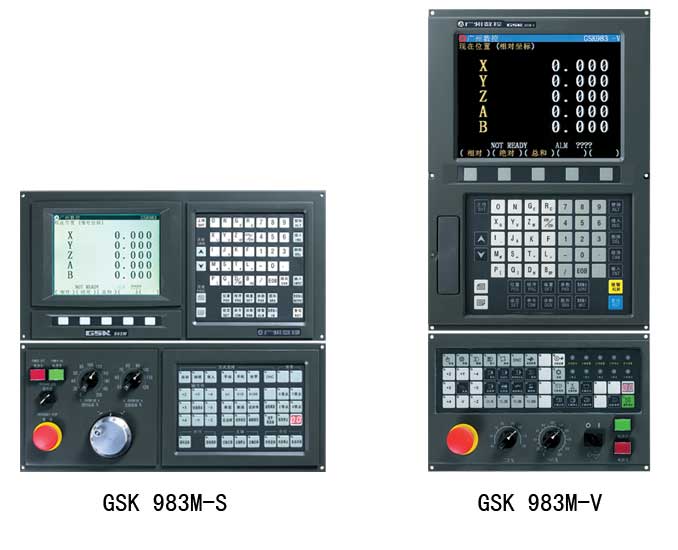

GSK983M-S/V Drillling&Milling CNC System

GSK983M-S is employed with 640*480 high resolution and high light LCD display about 7.5 inch, and GSK983M-V with 640*480 high resolution and high light 16 colors display about 10.4 inch. The two CNC systems are high speed, high precise and high efficient with high performance-cost and high reliability.

Characteristics
  • HIGH PRECISE MACHINING

It  is adopted with high performance position closed-loop control chip and high precise position  detection  components  to  real ize  the  high  precise  and  high  response  positioncontrol. The machinery errors such as the pitch error of bal l lead can be corrected by the memory pitch error compensation. The federate override can be automatical ly regulated at the corner.

  • HIGH SPEED MACHINING

When  the  resolution  is  1 m,  max.  rapid  speed  is  up  to  24m/min  and  max. feedrate  to  15000mm/min,  which  are  applied  to  the  control  of  milling machine and machining center. The system is adopted with many high speed CPUs  to  dispersedly  process  it,  which  has  realized  the  continuously high speed machining for the tiny block. It can execute 1000 blocks in a second,  which  is  specially  applied  to  high  speed  mold  machining,  auto component  machining,  wool  machinery  and  laser  machining  machine  tool control.

  • HIGH SPEED DNC FUNCTION

The  exclusive  high  speed  buffer  serial  DNC  interface  with  38,400  baud  rate  is connected with the computer or U disk to real ize the high speed DNC machining.

  • ABUNDANT CONTROL FUNCTIONS

It  is  employed  with  3  (up  to  5)feed  axes,  1  spindle,  tool  l ife  management,  direct drawing dimension programming, scale zoom, coordinate system rotating, compound  fixed  cycle,  back  stage  edit,  graphic  display,  exclusive  user  macro program to realize the special machinery machining.

  • POWERFUL BUILT-IN PLC

Built-in  machine  tool  sequence  control  and  large  capacity  PLC  for  the  peripheral equipment.  Maximum  I/O:  192  input  signals  and  128  output  signals  (I/O  points include I/O on the operator panel and I/O unit), I/O unit includes 64 input signals and 40 output signals, and program capacity is up to 2,000 steps (PLC-A type).

  • COMPACT AND ULTRA-THIN CNC

It  is  adopted  wi th  the  latest  high  integrated  FPGA,  CPLD  chip  to  reduce  the dimension of the control units.

  • IT IS CONNECTED WITH CNC BY THE HIGH SPEED SERIAL COMMUNICATION TO SAVE THE ASSEMBLY LINE.
  • MACHINE OPERATION PANEL

It has  44 mechanical keys with a LED indicator for each. Their function specified by PLC  programming  and  also  they  can  correspondingly  be  connected  with  the selection  switches  of  feedrate  override,  spindle  override,  MPG  override  and coordinate  axis.  Separated  structure:  it  is  connected with CNC  by  the  high  speed serial communication interface to save the wire.

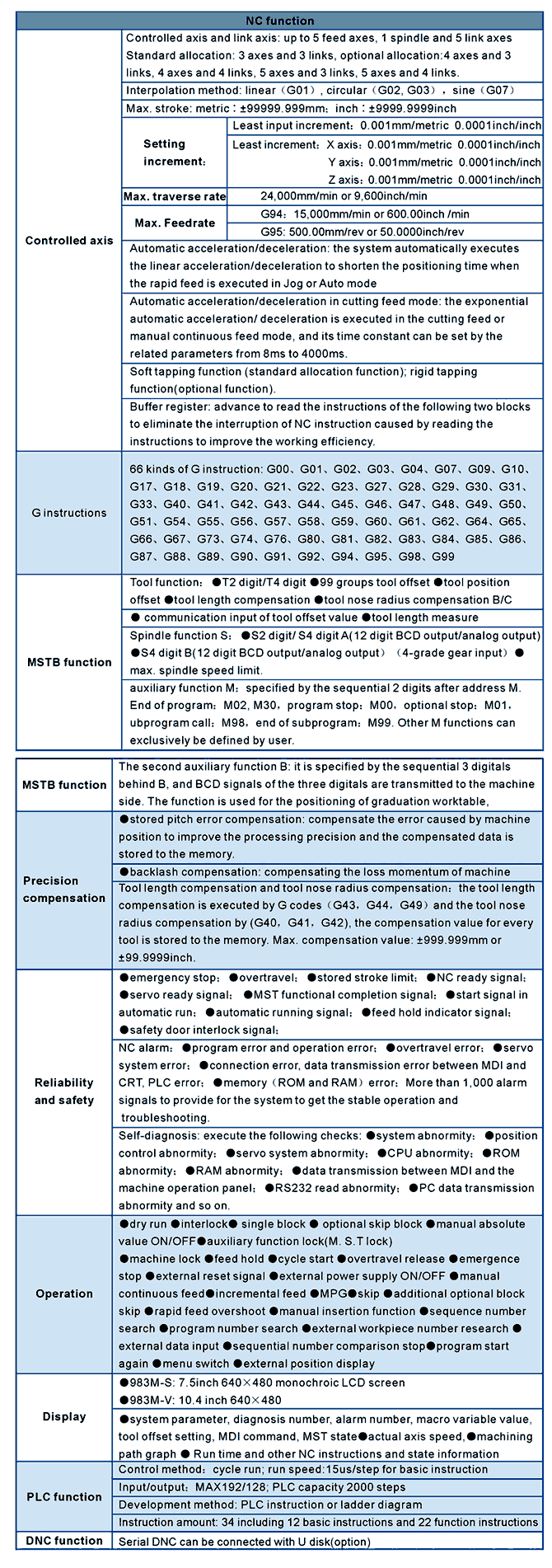

Technical specifications

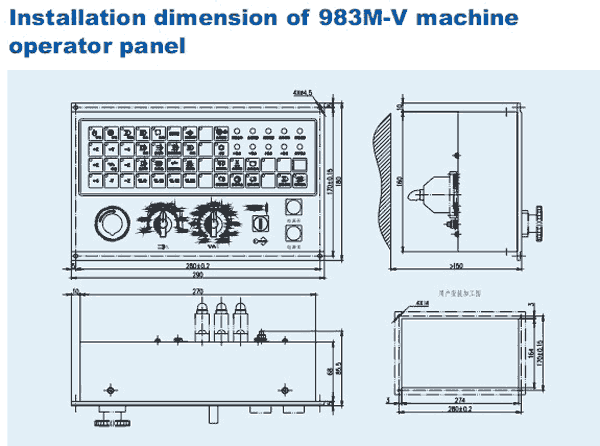

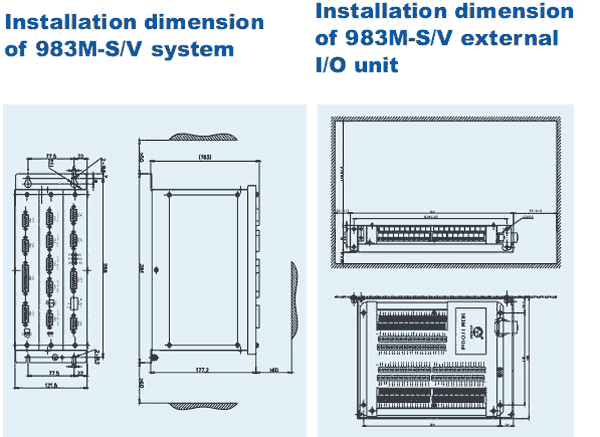

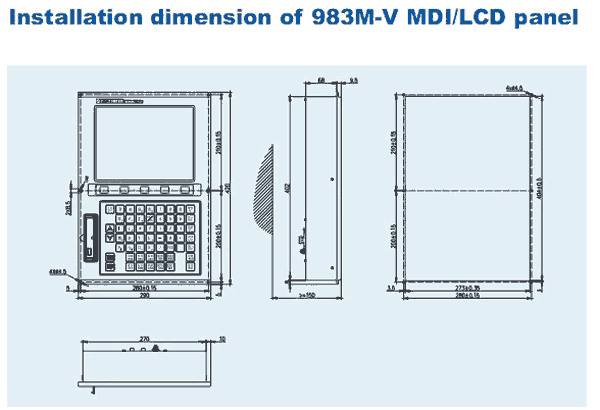

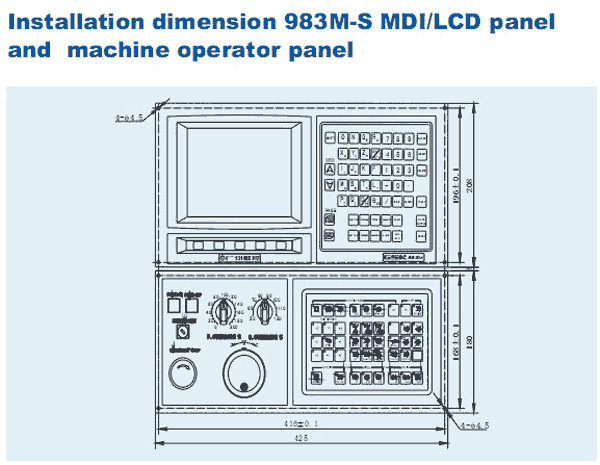

Appearance Dimension

Code list

Table 2.13 G code list

G codes

Group

Function

G00

01

Positioning

G01

Linear interpolation

G02

Circular interpolation (CW)

G03

Circular interpolation (CCW)

G04

00

Dwell

G05

High-speed continuous cutting mode

G07

Federate sine curve control

G09

00

Exact stop check

G10

Offset value setting, start of registration of tool life management data

G11

00

End of registration of tool life management data

G17

02

XY plane selection

G18

ZX plane selection

G19

YZ plane selection

G20

06

Input in inch

G21

Input in mm

G22

04

Stored stroke limit ON

G23

Stored stroke limit OFF

G27

00

Reference point return check

G28

Return to reference point

G29

Return from reference point

G30

Return to 2 nd , 3 rd , 4 th reference point

G31

Skipping cutting

G33

01

Thread cutting

G40

07

Cutter compensation cancel

G41

Cutter compensation left

G42

Cutter compensation right

G43

08

Tool length compensation + direction

G44

Tool length compensation - direction

G49

Tool length compensation cancel

G45

00

Tool offset increase

G46

Tool offset decrease

G47

Tool offset double increase

G48

Tool offset double decrease

G50

11

Scaling off

G51

Scaling on

G54

12

Workpiece coordinate system 1 select

G55

Workpiece coordinate system 2 select

G56

Workpiece coordinate system 3 select

G57

Workpiece coordinate system 4 select

G58

Workpiece coordinate system 5 select

G59

Workpiece coordinate system 6 select

G60

00

Single directional positioning

G61

Exact stop check mode

G62

13

Automatic corner override

G64

Cutting mode

G65

00

Custom macro simple call

G66

14

Custom macro modal call

G67

Custom macro modal call cancellation

G73

09

Peck drilling cycle

G74

Counter tapping cycle

G76

Fine boring

G80

Canned cycle cancel

G81

Drilling cycle, spot boring

G82

Drilling cycle, counter boring

G83

Peck drilling cycle

G84

Tapping cycle

G85

Boring cycle

G86

Boring cycle

G87

Back boring cycle

G88

Boring cycle

G89

Boring cycle

G90

03

Absolute programming

G91

Incremental programming

G92

00

Absolute zero programming

G94

05

Per minute feed

G95

Per revolution feed

G98

10

Return to initial point in canned cycle

G99

Return to R point in canned cycle
