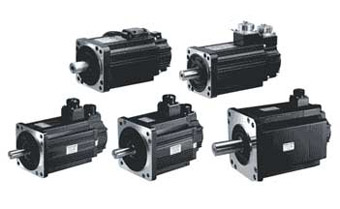

GSK SJT SERIES AC SERVO MOTOR |
 |
Optimizing design, compact, beautiful contour, long-term continuous working in rated working mode;
High performance rare earth permanent magnet material, high power, large load;
Excellent reverse potential sine, sine wave current drive and excellent low speed performance;
Motor inertia meeting machine feed driver;
Flevel insulation material to extend motor life; |
Imported feedback components, original imported low-noise motor bearing to reduce vibration and noise;
Full airproof and high reliability to meet industry environment;
Optimum matching with our AC servo driver to real ize optimum servo performance.
|

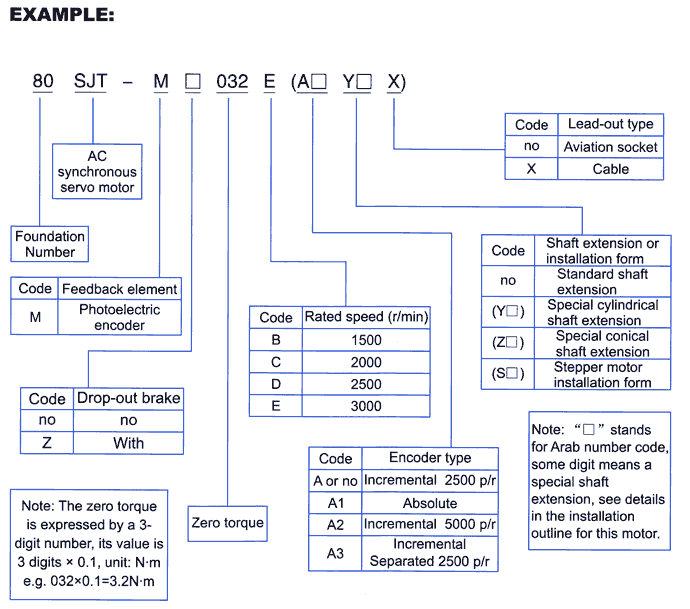

Motor Model Significance |
 |

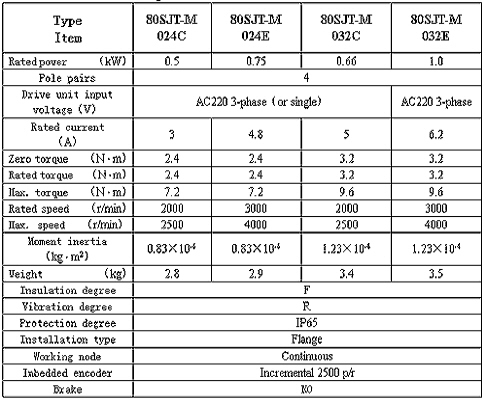

80SJT Series Motor Technical parameters |
 |

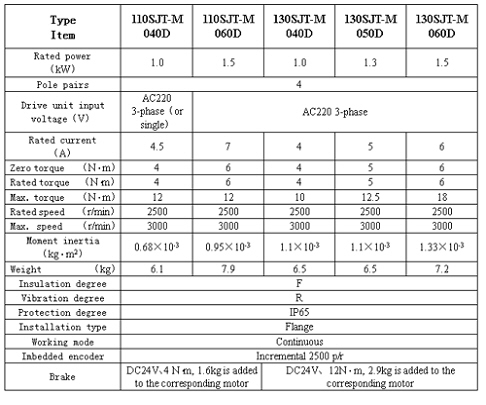

110SJT Series and 130SJT Series Motor Technical parameters(1) |
 |

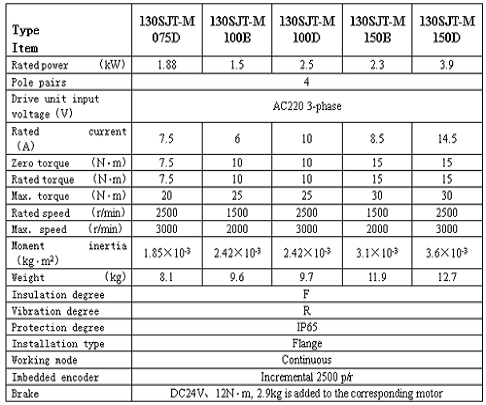

110SJT Series and 130SJT Series Motor Technical parameters (2) |
 |

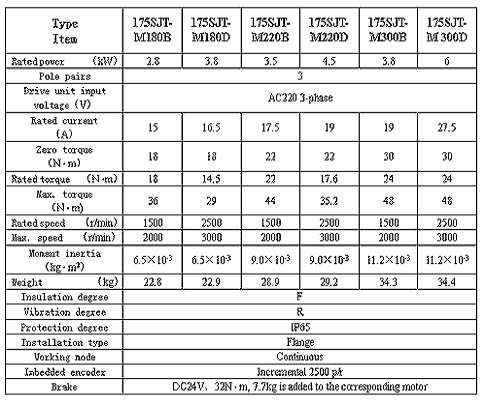

175SJT Series Motor Technical parameters |
 |

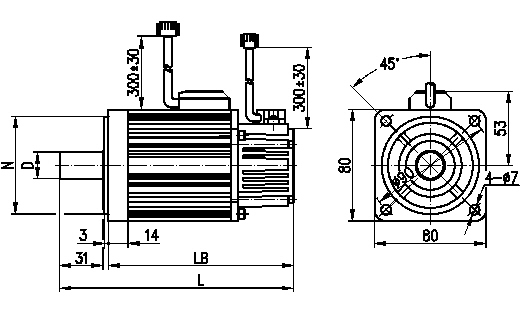

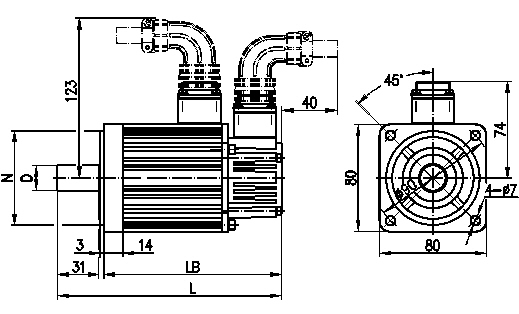

80SJT Series Motor Installation Dimension |
Aviation socket

Cable socket

 |

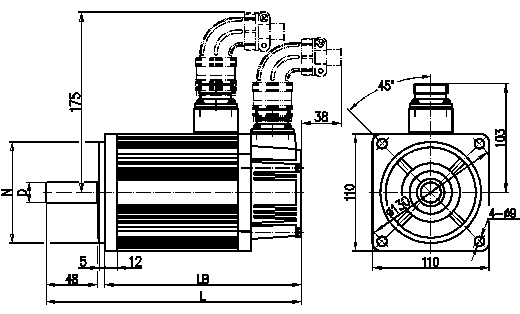

110SJT Series Motor Installation Dimension |

 |

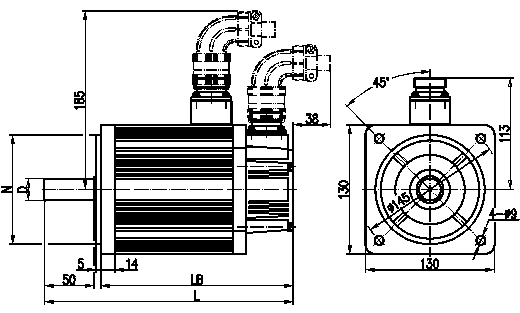

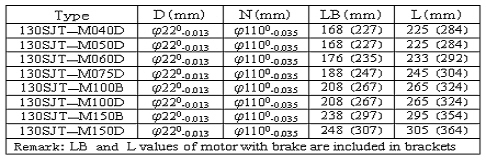

130SJT Series Motor Installation Dimension |

 |

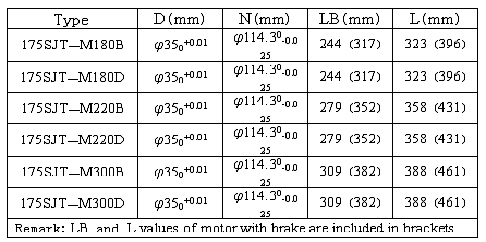

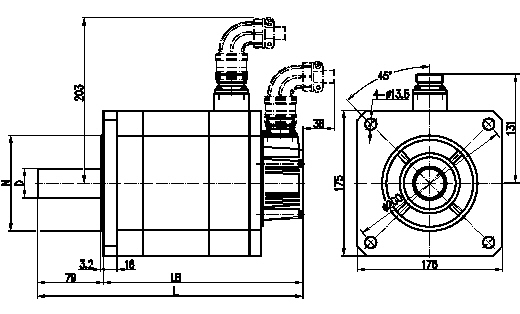

175SJT Series Motor Installation Dimension |

 |

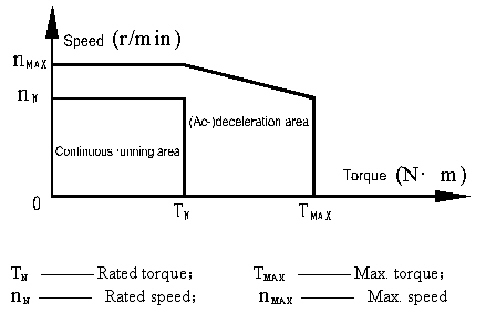

Motor Mechanical Characteristic Curve |
|
